12VDC Fail Safe Electric Dead Drop Bolt Lock Low Power With Timer Adjustable

Shenzhen Vians Electric Lock Co.,Ltd.
Contact Now

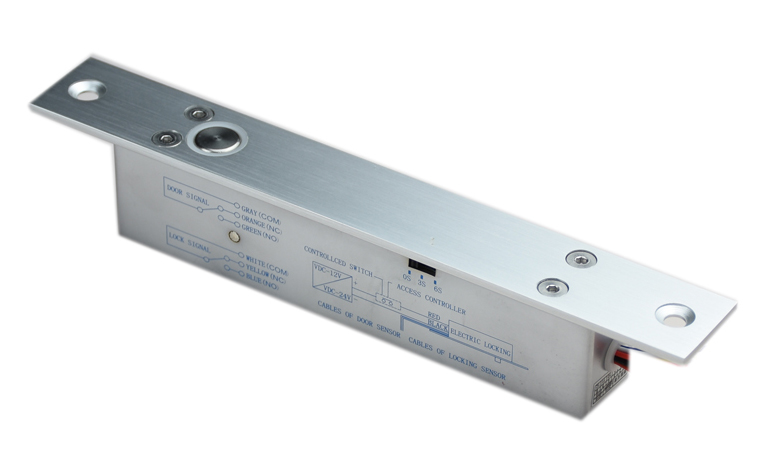

12VDC Fail Safe Electric Dead Drop Bolt Lock Low Power With Timer Adjustable

  • 1
  • 2
  • 3

Brand Name : VIANS

Model Number : VI-807ST

Certification : CE/ROHS/FCC/MA

Place of Origin : China

MOQ : 10pcs

Price : negotiation

Payment Terms : T/T or

Supply Ability : 3,000pcs per month

Delivery Time : 7 working days after received your payment

Packaging Details : 30 pcs/cartons

Fail Secure : Unlocked when energized

Face Plate : 200L*28W*39H(mm)

Voltage : 12VDC

Feature : Fail secure

Autolock Time Delay : 0,3,6,9sec

Weight : 0.72KG

Contact Now

12v Fail safe or fail secure electric dead drop bolt lock with timer adjustable

Product Description

Fail Secure Electric Bolt Lock could use for Intelligent Freezers.

Features:

1. The photoelectricity control technology, prevent machanical defect
2. Low Power, safety and durable
3. Low current, environmental protection
4. Special photoelectricity control, three steps current application
5. Long Life with 500000 operations
6. MOV provides reverse current protection
7. Superior strength aluminium alloy, solid stain-less steel bolt
8. Autolock Time Delay: 0,3,6,9secs.
9. Door statue signal output contact(NC.COM)
10. Double protection for loading current
11. Certificate: CE, MA
12. Photoelectricity control, low temperature
A: The low current is changed immediately
B: When door frame doesn`t coincide with door leaf, door leaf against the bolt, then the electric bolt will start the low-power function to bring low temperature
C:The photoelectricity control technology, prevent the machanical defect.

12VDC Fail Safe Electric Dead Drop Bolt Lock Low Power With Timer Adjustable

Product Parameter

Product Parameter Parameter Description
Lock Size 200Lx24.5Wx39H(mm)
Strike Size 90Lx25Wx2H(mm)
Input Voltage DC12V±10%
Start Current 950mA
Working Current 80mA
Door Type Applicable Wooden door , Glass door ,Metal door , Fireproof door
Time Delay 0,3,6,9sec
Signal output YES
Security Type Locked when energized
Weight 0.72KG

Features:


Secure mode: The door will lock while supplied with power, and unlock without power.


Especially suitable for glass doors.


It is made from durable and high aluminium alloy material, durable for use.


Special circuit design, the door will unlock until the power is cut off.


With no external interference, making it more stable and safer.

Installation drawing

12VDC Fail Safe Electric Dead Drop Bolt Lock Low Power With Timer Adjustable

12VDC Fail Safe Electric Dead Drop Bolt Lock Low Power With Timer Adjustable
12VDC Fail Safe Electric Dead Drop Bolt Lock Low Power With Timer Adjustable12VDC Fail Safe Electric Dead Drop Bolt Lock Low Power With Timer Adjustable

12VDC Fail Safe Electric Dead Drop Bolt Lock Low Power With Timer Adjustable

Relates Products:

Here is our bolt lock series, Any questions Welcome contact us.

12VDC Fail Safe Electric Dead Drop Bolt Lock Low Power With Timer Adjustable

Exhibitions:

We attend DUBAI INTERSECISC WEST in Las Vegas MIPS RussiaESSEN GermanyCPSE China very

year, welcome you come to visit us :)

FAQ

Q:How do I pay for my purchase?


A: we accept the following payment methods: cridet card; moneybooker;T/T;.

Q:How much does it cost to ship to my country?


A:Please tell us your receive goods address, we will check the shipping cost for your reference

Q:Is there any tracking Number for my item?

A: Yes, we ship every order with their Tracking Number, and you can view the shipment staus on the corresponding website.

Q:Does this product come with retail package?

A: We have declared the packing detail on the description of each product, please check it, thank you!

Q:I am a reseller,I would like to buy many pieces of your item, what's the wholesale price?

A: Hi,thanks for your inquiry, if you would like to buy large quantity, please send email to us, we will give you the best price, thanks!
